帮我一步步分析这个题

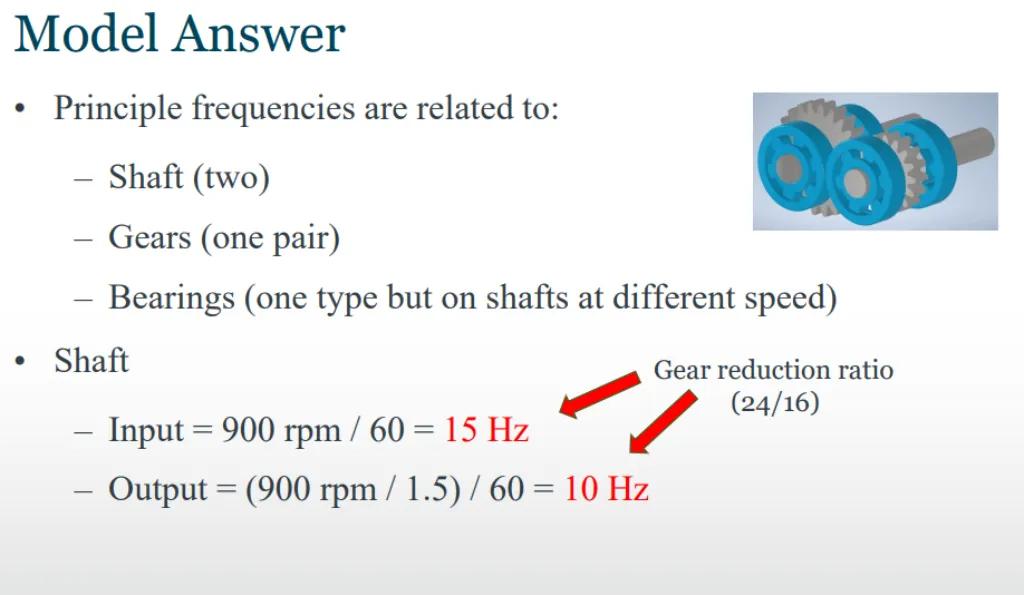

Model Answer
- Principle frequencies are related to:
- Shaft (two)
- Gears (one pair)
- Bearings (one type but on shafts at different speed)
- Shaft
- Input $=900 \mathrm{rpm} / 60=15 \mathrm{~Hz}$

Gear reduction ratio
- Output $=(900 \mathrm{rpm} / 1.5) / 60=10 \mathrm{~Hz}$

Question

帮我一步步分析这个题
Model Answer
- Principle frequencies are related to:
- Shaft (two)
- Gears (one pair)
- Bearings (one type but on shafts at different speed)
- Shaft
- Input $=900 \mathrm{rpm} / 60=15 \mathrm{~Hz}$

Gear reduction ratio
- Output $=(900 \mathrm{rpm} / 1.5) / 60=10 \mathrm{~Hz}$

Accepted Answer

∻Solution by Steps∻ ‖ step 1 ⋮ The input frequency is calculated as follows: $ 15 \, \text{Hz} = \frac{900 \, \text{rpm}}{60} $ ‖ ‖ step 2 ⋮ The output frequency is calculated using the gear reduction ratio: $ 10 \, \text{Hz} = \frac{(900 \, \text{rpm} / 1.5)}{60} $ ‖ ‖ step 3 ⋮ The gear reduction ratio is given as $ \frac{24}{16} $, which simplifies to $ 1.5 $ ‖ ∻Answer∻ ⚹ The input frequency is 15 Hz and the output frequency is 10 Hz. ⚹ ∻Key Concept∻ ⚹ Frequency calculation in mechanical systems ⚹ ∻Explanation∻ ⚹ The input and output frequencies are derived from the rotational speed in revolutions per minute (rpm) and adjusted for the gear reduction ratio. ⚹◊What is the formula for calculating the gear reduction ratio in terms of input and output frequencies?⍭ Generate me a similar question◊
