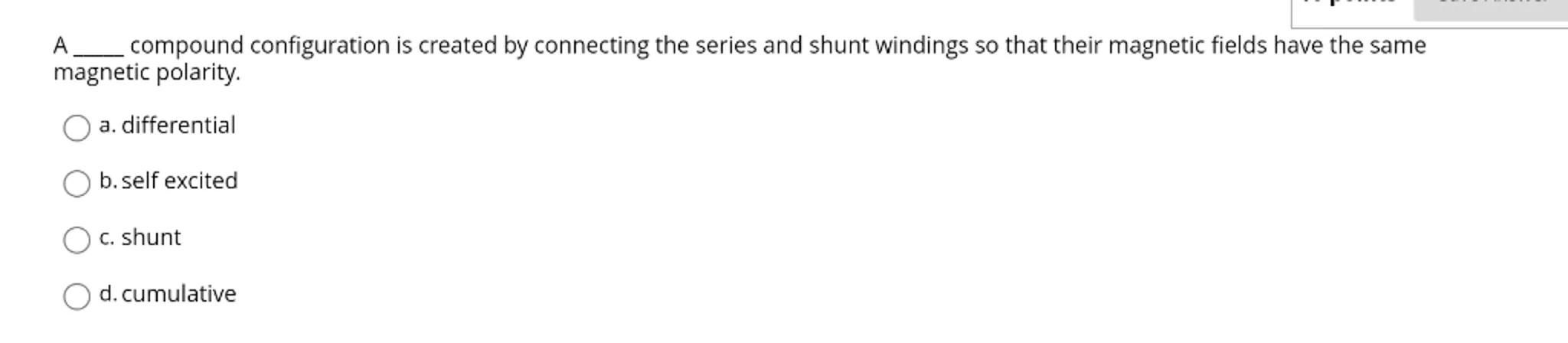

A $\qquad$ compound configuration is created by connecting the series and shunt windings so that their magnetic fields have the same magnetic polarity.
a. differential
b. self excited
c. shunt
d. cumulative

Question

Accepted Answer

Hi Vic! Great to see your question. The type of compound configuration created by connecting series and shunt windings so that their magnetic fields have the same magnetic polarity is known as a **cumulative** configuration. This means that the magnetic fields reinforce each other, which is essential for certain types of electrical machines. If you have any more questions or need further clarification, feel free to ask!
