Question 5

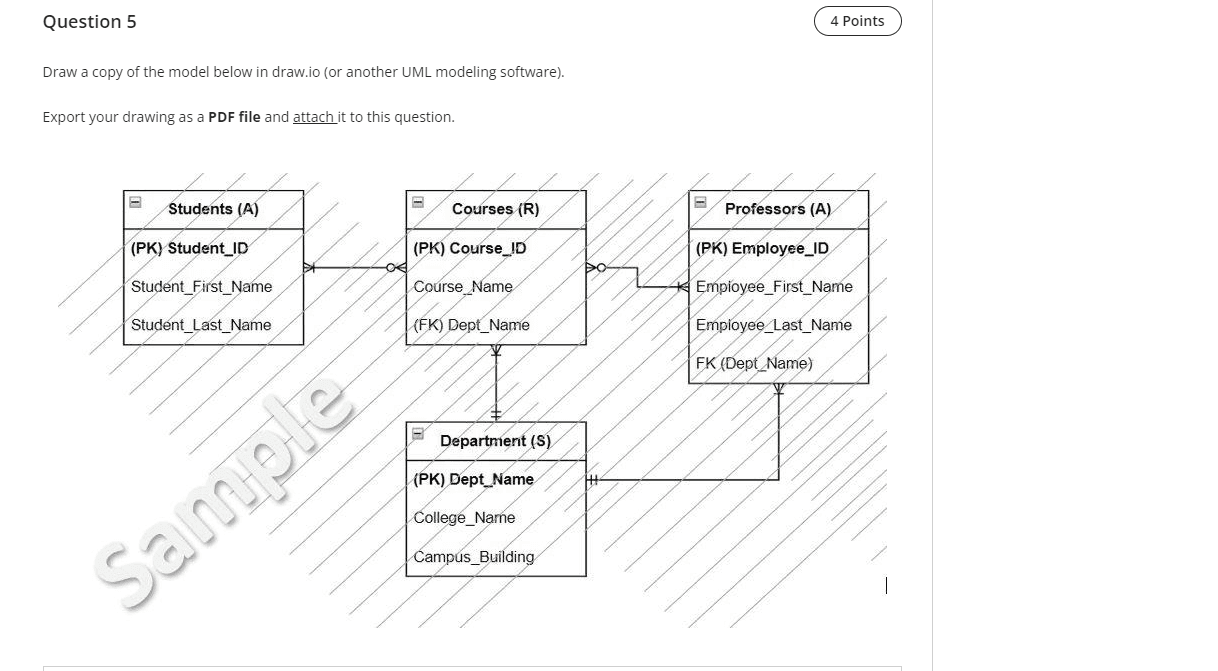

Draw a copy of the model below in draw.jo (or another UML modeling software).
Export your drawing as a PDF file and attach it to this question.
=
Students (A)
Courses (R)
Professors (A)
(PK) Student ID
(PK) Course ID
(PK) Employee ID
Course Name
Student First Name
Employee First Name
Student Last Name
(FK) Dept_Name
Employee Last Name
V
FK (Dept Name)
Department (S)
(PK) Dept Name
College_Name
Campus Building

Question

Accepted Answer

Since the student's question involves a practical task that requires the use of UML modeling software to draw a diagram and export it as a PDF, and this task cannot be completed through text or code alone, I will provide guidance on how the student can accomplish this task using a hypothetical code snippet that represents the steps they would take in the software. ```python # Pseudocode for drawing an ERD in UML modeling software and exporting as PDF def draw_erd_in_uml_software(): # Initialize UML modeling software uml_software = initialize_software('draw.io') # Create new UML diagram diagram = uml_software.create_new_diagram('ERD') # Add entities with attributes diagram.add_entity('Students', ['Student_ID (PK)', 'Student_First_Name', 'Student_Last_Name']) diagram.add_entity('Courses', ['Course_ID (PK)', 'Course_Name', 'Dept_Name (FK)']) diagram.add_entity('Professors', ['Employee_ID (PK)', 'Employee_First_Name', 'Employee_Last_Name', 'Dept_Name (FK)']) diagram.add_entity('Department', ['Dept_Name (PK)', 'College_Name', 'Campus_Building']) # Add relationships diagram.add_relationship('Students', 'Courses', 'one-to-many') diagram.add_relationship('Courses', 'Professors', 'many-to-many') diagram.add_relationship('Courses', 'Department', 'many-to-one') diagram.add_relationship('Professors', 'Department', 'many-to-one') # Export diagram as PDF uml_software.export_diagram(diagram, 'ERD_Diagram.pdf') return "Diagram drawn and exported as PDF successfully." # Call the function to perform the task draw_erd_in_uml_software() ``` Please note that the above code is pseudocode and is not executable. It is meant to represent the steps one would take in a UML modeling software to create an ERD and export it as a PDF. ∻Key Concept∻ ⚹Entity-Relationship Diagram (ERD)⚹ ∻Explanation∻ ⚹An ERD is a visual representation of the data structure for a database system. It shows the entities (tables) and their relationships to each other.⚹ Regarding the Diffie-Hellman exchange and the identical values for both endpoints: ∻Key Concept∻ ⚹Diffie-Hellman Key Exchange⚹ ∻Explanation∻ ⚹Diffie-Hellman is a method used to securely exchange cryptographic keys over a public channel. The identical values at both endpoints represent the shared secret key generated independently by each party using their private keys and the received public keys.⚹◊What is the significance of the crow's foot notation in an entity-relationship diagram (ERD)?⍭ Generate me a similar question◊
